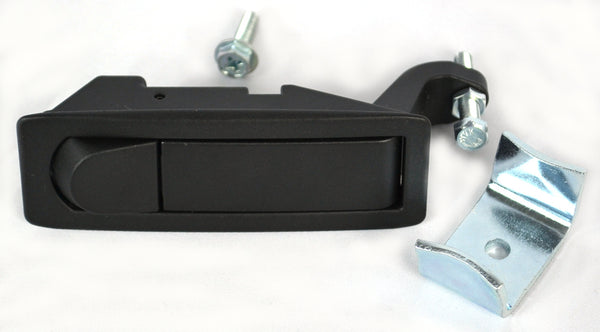

Southco C2-32-15 Lever Latch Raised Trigger Non-Locking Black
Southco C2-32-15 Series Powder Coated Zinc Alloy Adjustable Lever Hand Operated Compression Latch with Raised Trigger, Non-Locking, 0.20" Thick, 0.04"-0.94" Grip Range, Black Southco adjustable lever compression latch with raised trigger. Easy to install, and easy to operate, these popular low-profile lever latches present a sleek look for highly visible installations. A discretely mounted trigger mechanism is provided to release the built-in handle for use. Compressive action pulls door tight, without rubbing action and without wear on latch contact point or frame. A broad grip provides for easy grip adjustment to accommodate grip changes over time. Flush trigger models present smoothest door surface, and greater economy where key- or tool-restricted access is not required. Raised trigger models provide enhanced ergonomics and the enhanced security of keylock or tool access where required. Maximum recommended pawl load (in closed position) 1100N. Industry applications includes automotive/trucks, construction equipment, off-highway vehicles, farm equipment, electronic enclosures, exhibits/signs, food equipment, HVAC, industrial enclosures, industrial machinery, machine tools and metal cutting, lawn/garden equipment, marine, networking, railway, telecommunications, vending machines. Serrated mounting screw: M5 x 16. Head style: Raised trigger. Profile: Flush. Hand operated. Tool access styles for raised trigger models include shutter locking, 7-millimeters square, 4-millimeters hex recess, number 2 Phillips recess, or railway standard 7.5-millimeters tapered square recess. 0.20-inches door thickness.
